Calibrating laser Doppler anemometers utilizing an optical chopper.

Abstract

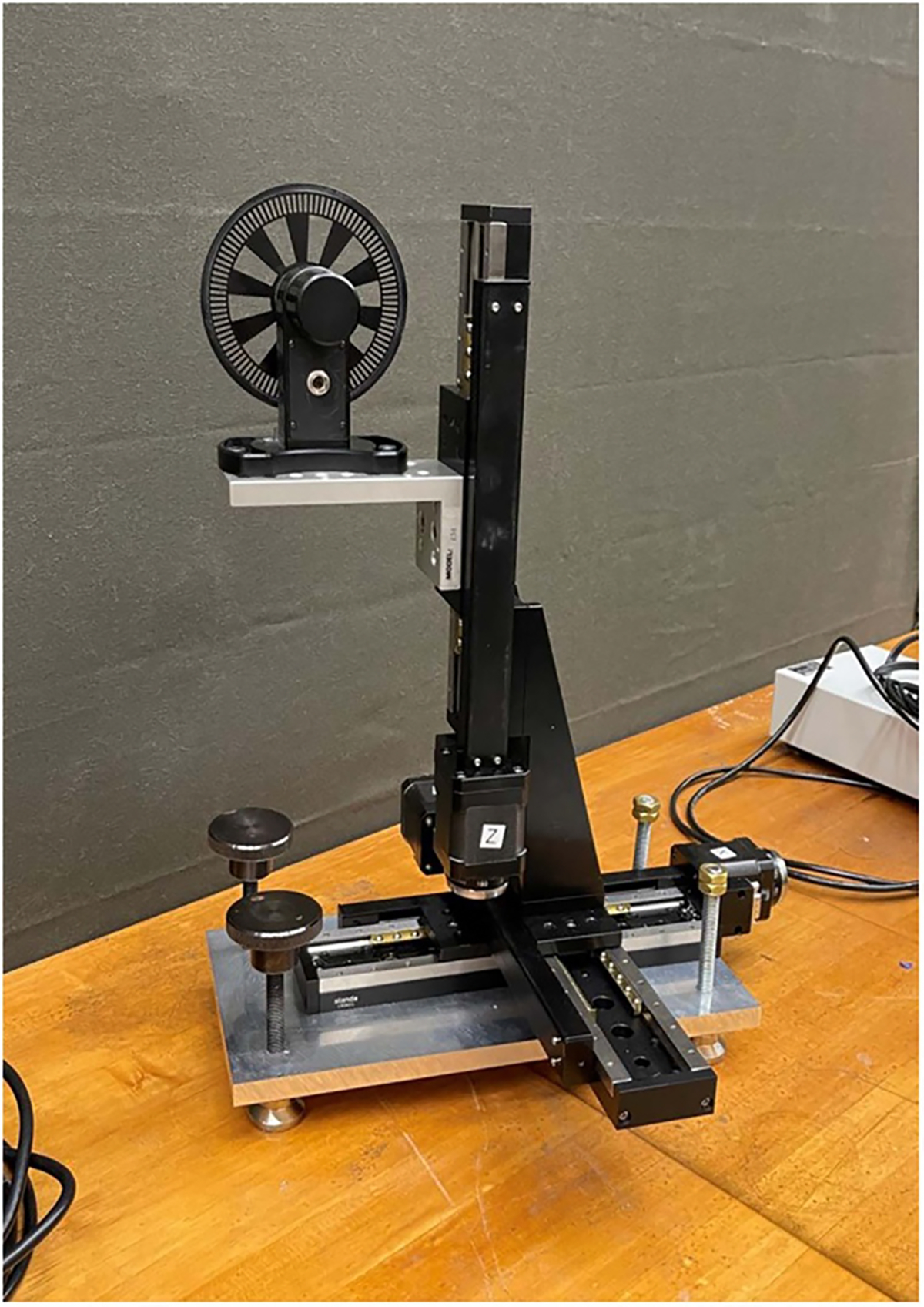

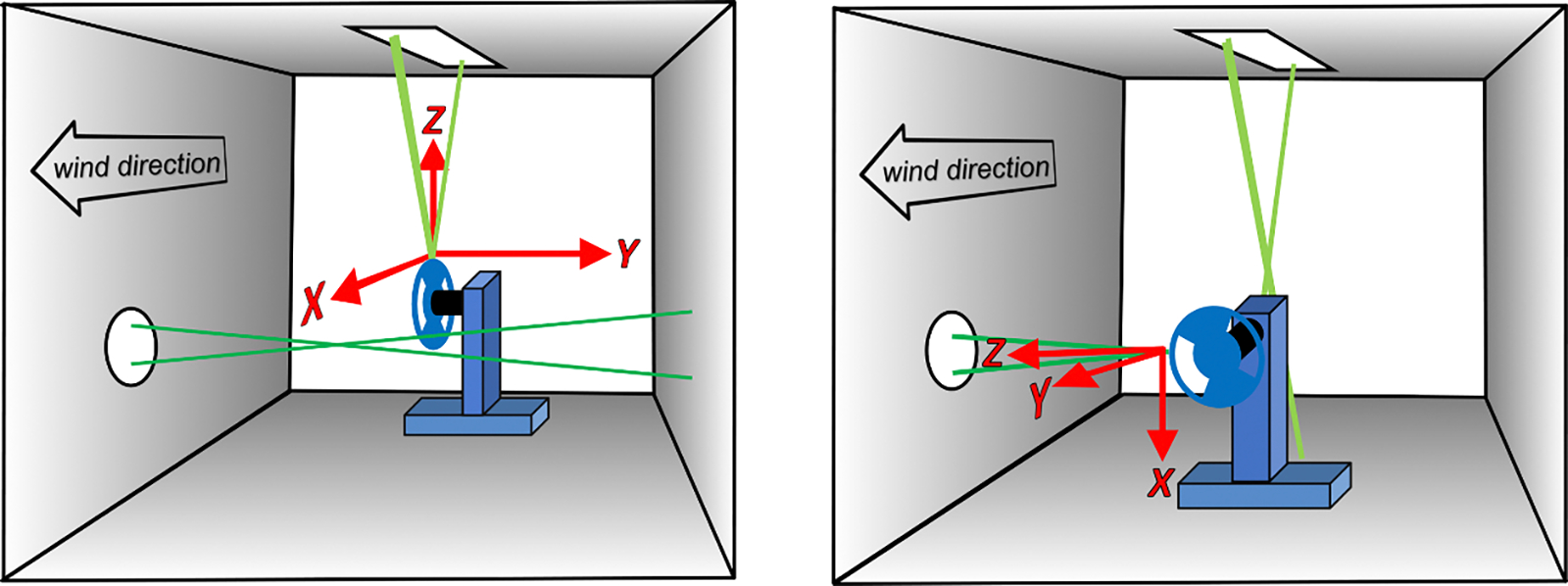

Laser Doppler anemometers (LDAs) use scattered light to determine velocity components of a flowing fluid. The operating principal of LDAs is simple conceptually; however, it is impractical to trace the LDA-determined velocities to the SI by characterizing the LDA's subsystems that generate, detect, and process optical signals because these subsystems are complex and include proprietary features. To circumvent this, we calibrated the complete LDA systems utilizing an optical chopper blade as an accurate, SI-traceable velocity standard. The calibrations achieved the expanded velocity uncertainty 0.094% at a 95% confidence level. We calibrated two LDAs that differed in manufacturer, focal length (in the ratio 3.3:1), sensing volume (in the ratio 100:1), and orientation (vertical and horizontal bisectors of the LDA's crossing beams). To compare the calibrations, we measured airspeeds in NIST's wind tunnel using both LDAs. The results differed from each other by, at most, 0.2% throughout the airspeed range (0.5-30) m s^-1.
