Fabrication of Biomimetic Cell Culture Membranes Using Robust and Reusable Nickel Micropillar Molds.

IF 6.1 3区 工程技术 Q1 BIOCHEMICAL RESEARCH METHODS
BioChip Journal Pub Date : 2025-01-01 Epub Date: 2024-12-10 DOI:10.1007/s13206-024-00179-7
Taiki Otomo, Hyunsoo Noh, Tatsuya Matsubara, Deok-Ho Kim, Masashi Ikeuchi, Kazuhiro Yoshida, Joon-Wan Kim
{"title":"Fabrication of Biomimetic Cell Culture Membranes Using Robust and Reusable Nickel Micropillar Molds.","authors":"Taiki Otomo, Hyunsoo Noh, Tatsuya Matsubara, Deok-Ho Kim, Masashi Ikeuchi, Kazuhiro Yoshida, Joon-Wan Kim","doi":"10.1007/s13206-024-00179-7","DOIUrl":null,"url":null,"abstract":"<p><p>In the practical application of organ-on-a-chip, mass production technology for flexible porous membranes is an essential element for mimicking the basement membrane of the body. Porous PDMS membrane is a promising material due to its high optical transparency, flexibility, and biocompatibility. However, the fabrication process is complex and costly. Even with soft lithography, a relatively straightforward method, there is a risk that the negative resist pillars used as molds peeling off from the substrate in mass production. In this study, we propose a novel mass production method for fabricating porous PDMS membranes using high-strength nickel (Ni) micropillars as molds by combining photolithography and electroforming technologies. The unibody structure of Ni micropillars ensures high reliability and provides a semi-permanent mold without degradation or detachment. We successfully fabricated two types of Ni micropillars and subsequently formed their corresponding porous PDMS membranes (<i>D</i> (diameter) = 8 μm, <i>P</i> (pitch) = 30 μm, and <i>D</i> = 10 μm, <i>P</i> = 20 μm). The porous PDMS membrane showed non-inferiority to the control group in terms of viability when cultured with human vascular endothelial cells. Furthermore, we showed that the porous PDMS membrane can be used to evaluate the vascular permeability of nanoparticles.</p>","PeriodicalId":8768,"journal":{"name":"BioChip Journal","volume":"19 1","pages":"91-98"},"PeriodicalIF":6.1000,"publicationDate":"2025-01-01","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC11922972/pdf/","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"BioChip Journal","FirstCategoryId":"5","ListUrlMain":"https://doi.org/10.1007/s13206-024-00179-7","RegionNum":3,"RegionCategory":"工程技术","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"2024/12/10 0:00:00","PubModel":"Epub","JCR":"Q1","JCRName":"BIOCHEMICAL RESEARCH METHODS","Score":null,"Total":0}
引用次数: 0

Abstract

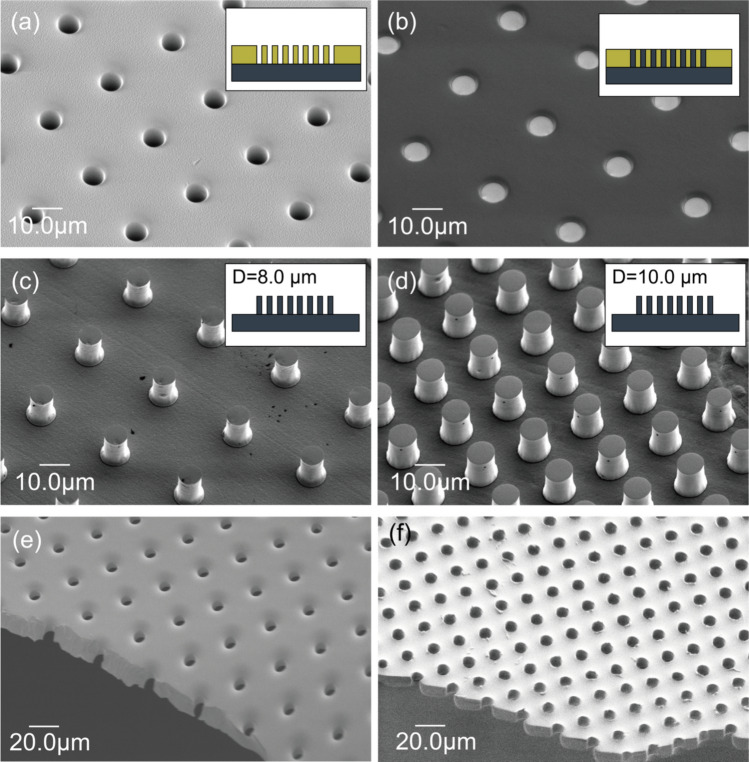

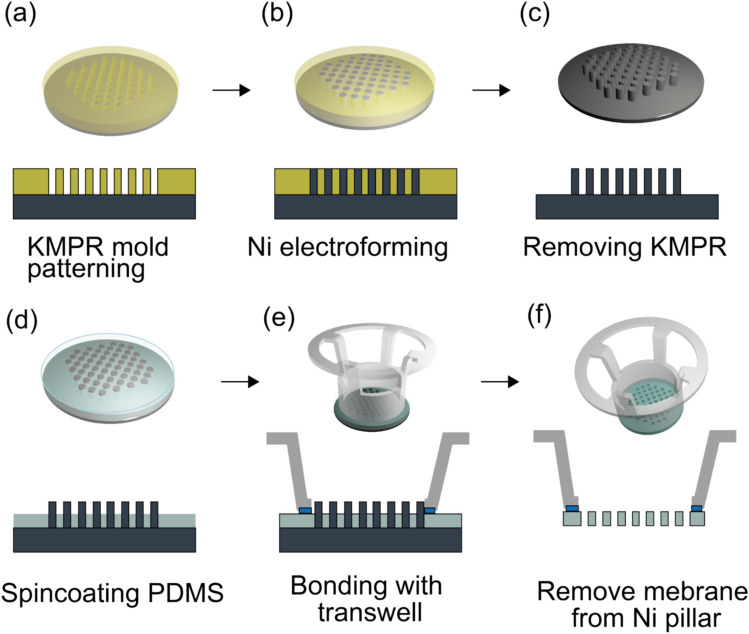

In the practical application of organ-on-a-chip, mass production technology for flexible porous membranes is an essential element for mimicking the basement membrane of the body. Porous PDMS membrane is a promising material due to its high optical transparency, flexibility, and biocompatibility. However, the fabrication process is complex and costly. Even with soft lithography, a relatively straightforward method, there is a risk that the negative resist pillars used as molds peeling off from the substrate in mass production. In this study, we propose a novel mass production method for fabricating porous PDMS membranes using high-strength nickel (Ni) micropillars as molds by combining photolithography and electroforming technologies. The unibody structure of Ni micropillars ensures high reliability and provides a semi-permanent mold without degradation or detachment. We successfully fabricated two types of Ni micropillars and subsequently formed their corresponding porous PDMS membranes (D (diameter) = 8 μm, P (pitch) = 30 μm, and D = 10 μm, P = 20 μm). The porous PDMS membrane showed non-inferiority to the control group in terms of viability when cultured with human vascular endothelial cells. Furthermore, we showed that the porous PDMS membrane can be used to evaluate the vascular permeability of nanoparticles.

Abstract Image

Abstract Image

Abstract Image

利用可重复使用的镍微柱模具制备仿生细胞培养膜。
在器官芯片的实际应用中,柔性多孔膜的量产技术是模拟人体基底膜的重要组成部分。多孔PDMS膜具有较高的光学透明性、柔韧性和生物相容性,是一种很有前途的材料。然而,制造过程复杂且成本高昂。即使使用软光刻(一种相对简单的方法),在大规模生产中,用作模具的负阻光柱也有从基材上脱落的风险。在本研究中,我们提出了一种结合光刻和电铸技术,以高强度镍(Ni)微柱为模具制造多孔PDMS膜的新型批量生产方法。镍微柱的一体式结构确保了高可靠性,并提供了半永久性模具,不会降解或脱落。我们成功制备了两种类型的Ni微柱,并形成了相应的多孔PDMS膜(D(直径)= 8 μm, P(间距)= 30 μm, D = 10 μm, P = 20 μm)。当与人血管内皮细胞一起培养时,多孔PDMS膜的活力不低于对照组。此外,我们发现多孔PDMS膜可以用来评估纳米颗粒的血管通透性。
