[Determination of vitamin D and 25-hydroxyvitamin D in animal-derived foods by derivatization-ultra performance liquid chromatography-tandem mass spectrometry].

Yu Liu, Ji-Hui Xie, Ping-Ping Zhang, Di Zhou, Wei-Ke Zhao, Ju-Zhou Zhang
{"title":"[Determination of vitamin D and 25-hydroxyvitamin D in animal-derived foods by derivatization-ultra performance liquid chromatography-tandem mass spectrometry].","authors":"Yu Liu, Ji-Hui Xie, Ping-Ping Zhang, Di Zhou, Wei-Ke Zhao, Ju-Zhou Zhang","doi":"10.3724/SP.J.1123.2024.02003","DOIUrl":null,"url":null,"abstract":"<p><p>Animal-derived foods are essential sources of vitamin D and 25-hydroxyvitamin D in the human diet. Currently, the relevant regulatory methods in China are limited to using non-derivatization methods to determine vitamin D content. In this study, 4-phenyl-1,2,4-triazoline-3-5-dione (PTAD) was used as a derivative reagent, and the ionization efficiencies of vitamin D and 25-hydroxyvitamin D were improved by introducing readily ionizable groups via the Diels-Alder reaction. This method allowed for the simultaneous determination of vitamin D and 25-hydroxyvitamin D in animal-derived foods using derivatization and ultra performance liquid chromatography-tandem mass spectrometry (UPLC-MS/MS). The conditions for derivatization, sample pretreatment, chromatographic separation, and MS detection were optimized. The results showed that the derivatization reaction was effective in acetonitrile solvent at a target compound to PTAD mass ratio of 1∶10000 and stabilized after 1 h. Compared with Silica and C<sub>18</sub> solid-phase extraction (SPE) columns, hydrophilic lipophilic balanced (HLB) SPE columns yielded higher recoveries of the target compounds, while simultaneously reducing the matrix effect. The detection sensitivity was significantly improved by adding 5 mmol/L methylamine to the water-methanol mobile phase system. An isotopic internal standard was added to the homogenized samples, which were saponified with alkali solution, extracted and concentrated, purified using a SPE column, derivatized, and separated on a Waters Acquity UPLC BEH C<sub>18</sub> column (100 mm×2.1 mm, 1.7 μm) with a gradient elution using 0.1% formic acid-5 mmol/L methylamine aqueous solution and 0.1% formic acid-5 mmol/L methylamine of methanol as the mobile phases. The analytes were determined by multiple reaction monitoring (MRM) in positive electrospray ionization mode (ESI<sup>+</sup>) and quantified using the internal standard method. The results for both vitamin D and 25-hydroxyvitamin D showed good linearity in the range of 0.2-50 μg/L, with correlation coefficients of 0.9995-0.9999. The limits of detection (LODs) and limits of quantification (LOQs) were in the range of 0.018-0.066 and 0.06-0.22 μg/kg, respectively. Recoveries were 92.6%-99.4% at three spiked levels (0.20, 1.0, and 5.0 μg/kg), and the relative standard deviations (RSDs) were 3.6%-6.2%. This highly sensitive method yields reproducible and accurate results for the quantitative determination of vitamin D and 25-hydroxyvitamin D in animal-derived foods.</p>","PeriodicalId":101336,"journal":{"name":"Se pu = Chinese journal of chromatography","volume":"43 3","pages":"228-236"},"PeriodicalIF":0.0000,"publicationDate":"2025-03-01","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC11883526/pdf/","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Se pu = Chinese journal of chromatography","FirstCategoryId":"1085","ListUrlMain":"https://doi.org/10.3724/SP.J.1123.2024.02003","RegionNum":0,"RegionCategory":null,"ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"","JCRName":"","Score":null,"Total":0}
引用次数: 0

Abstract

Animal-derived foods are essential sources of vitamin D and 25-hydroxyvitamin D in the human diet. Currently, the relevant regulatory methods in China are limited to using non-derivatization methods to determine vitamin D content. In this study, 4-phenyl-1,2,4-triazoline-3-5-dione (PTAD) was used as a derivative reagent, and the ionization efficiencies of vitamin D and 25-hydroxyvitamin D were improved by introducing readily ionizable groups via the Diels-Alder reaction. This method allowed for the simultaneous determination of vitamin D and 25-hydroxyvitamin D in animal-derived foods using derivatization and ultra performance liquid chromatography-tandem mass spectrometry (UPLC-MS/MS). The conditions for derivatization, sample pretreatment, chromatographic separation, and MS detection were optimized. The results showed that the derivatization reaction was effective in acetonitrile solvent at a target compound to PTAD mass ratio of 1∶10000 and stabilized after 1 h. Compared with Silica and C18 solid-phase extraction (SPE) columns, hydrophilic lipophilic balanced (HLB) SPE columns yielded higher recoveries of the target compounds, while simultaneously reducing the matrix effect. The detection sensitivity was significantly improved by adding 5 mmol/L methylamine to the water-methanol mobile phase system. An isotopic internal standard was added to the homogenized samples, which were saponified with alkali solution, extracted and concentrated, purified using a SPE column, derivatized, and separated on a Waters Acquity UPLC BEH C18 column (100 mm×2.1 mm, 1.7 μm) with a gradient elution using 0.1% formic acid-5 mmol/L methylamine aqueous solution and 0.1% formic acid-5 mmol/L methylamine of methanol as the mobile phases. The analytes were determined by multiple reaction monitoring (MRM) in positive electrospray ionization mode (ESI+) and quantified using the internal standard method. The results for both vitamin D and 25-hydroxyvitamin D showed good linearity in the range of 0.2-50 μg/L, with correlation coefficients of 0.9995-0.9999. The limits of detection (LODs) and limits of quantification (LOQs) were in the range of 0.018-0.066 and 0.06-0.22 μg/kg, respectively. Recoveries were 92.6%-99.4% at three spiked levels (0.20, 1.0, and 5.0 μg/kg), and the relative standard deviations (RSDs) were 3.6%-6.2%. This highly sensitive method yields reproducible and accurate results for the quantitative determination of vitamin D and 25-hydroxyvitamin D in animal-derived foods.

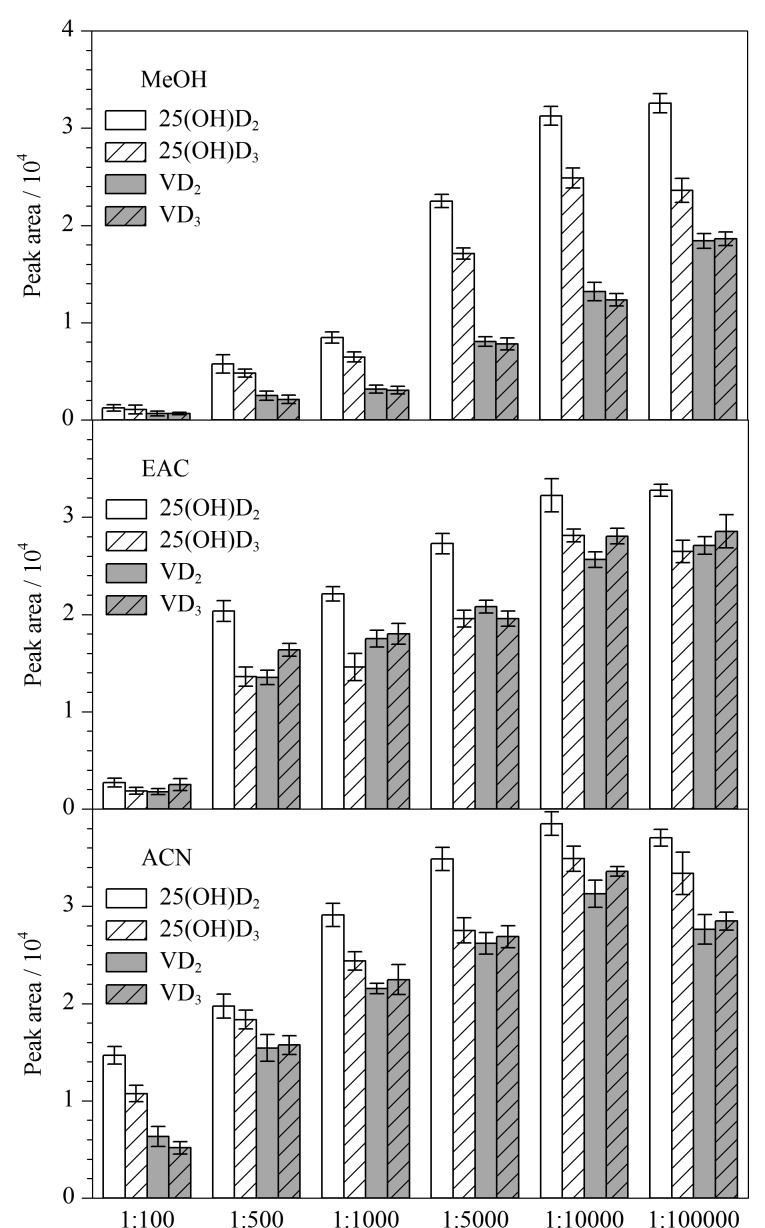

Abstract Image

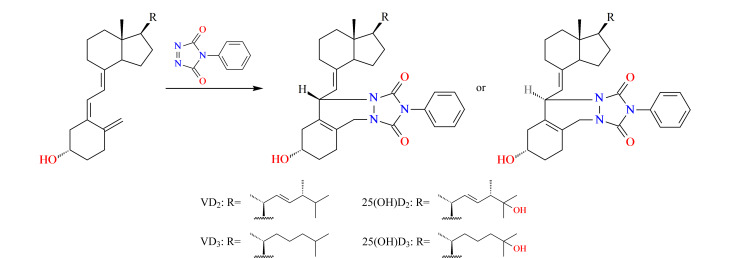

Abstract Image

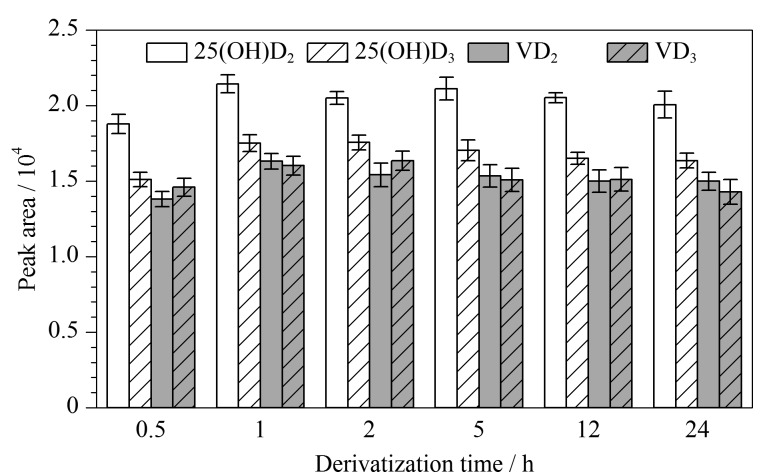

Abstract Image

衍生-超高效液相色谱-串联质谱法测定动物源性食品中的维生素D和25-羟基维生素D
动物源性食品是人类膳食中维生素 D 和 25-羟基维生素 D 的重要来源。目前,中国的相关监管方法仅限于使用非衍生法测定维生素 D 含量。本研究采用 4-苯基-1,2,4-三唑啉-3-5-二酮(PTAD)作为衍生试剂,通过 Diels-Alder 反应引入易电离基团,提高了维生素 D 和 25- 羟维生素 D 的电离效率。该方法采用衍生化和超高效液相色谱-串联质谱(UPLC-MS/MS)技术,可同时测定动物源性食品中的维生素 D 和 25-羟基维生素 D。对衍生化、样品前处理、色谱分离和质谱检测条件进行了优化。结果表明,当目标化合物与 PTAD 的质量比为 1∶10000 时,衍生反应在乙腈溶剂中有效,并在 1 小时后趋于稳定;与硅胶柱和 C18 固相萃取柱相比,亲水亲脂平衡固相萃取柱(HLB)的目标化合物回收率更高,同时降低了基质效应。在水-甲醇流动相体系中加入 5 mmol/L 甲胺后,检测灵敏度明显提高。匀浆样品中加入同位素内标物,经碱溶液皂化、萃取浓缩、固相萃取柱净化、衍生化后,在Waters Acquity UPLC BEH C18色谱柱(100 mm×2.1 mm,1.7 μm)上分离,以0.1%甲酸-5 mmol/L甲胺水溶液和0.1%甲酸-5 mmol/L甲胺甲醇水溶液为流动相进行梯度洗脱。分析物在正电喷雾电离模式(ESI+)下进行多反应监测(MRM)测定,并采用内标法进行定量。结果表明,维生素 D 和 25- 羟基维生素 D 在 0.2-50 μg/L 范围内线性关系良好,相关系数为 0.9995-0.9999。检出限(LOD)和定量限(LOQ)分别为 0.018-0.066 和 0.06-0.22 μg/kg。在三个添加水平(0.20、1.0 和 5.0 μg/kg)下,回收率为 92.6%-99.4%,相对标准偏差(RSD)为 3.6%-6.2%。该方法灵敏度高,结果重复性好且准确,可用于动物源性食品中维生素 D 和 25-羟基维生素 D 的定量检测。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
