Augmented Reality Implementation in Minimally Invasive Surgery for Future Application in Pulmonary Surgery: A Systematic Review.

IF 1.2 4区医学 Q3 SURGERY

Surgical Innovation Pub Date : 2024-12-01 Epub Date: 2024-10-07 DOI:10.1177/15533506241290412

Marie-Claire J Doornbos, Jette J Peek, Alexander P W M Maat, Jelle P Ruurda, Pieter De Backer, Bart M W Cornelissen, Edris A F Mahtab, Amir H Sadeghi, Jolanda Kluin

{"title":"Augmented Reality Implementation in Minimally Invasive Surgery for Future Application in Pulmonary Surgery: A Systematic Review.","authors":"Marie-Claire J Doornbos, Jette J Peek, Alexander P W M Maat, Jelle P Ruurda, Pieter De Backer, Bart M W Cornelissen, Edris A F Mahtab, Amir H Sadeghi, Jolanda Kluin","doi":"10.1177/15533506241290412","DOIUrl":null,"url":null,"abstract":"Objective: This systematic review investigates of Augmented Reality (AR) systems used in minimally invasive surgery of deformable organs, focusing on initial registration, dynamic tracking, and visualization. The objective is to acquire a comprehensive understanding of the current knowledge, applications, and challenges associated with current AR-techniques, aiming to leverage these insights for developing a dedicated AR pulmonary Video or Robotic Assisted Thoracic Surgery (VATS/RATS) workflow.Methods: A systematic search was conducted within Embase, Medline (Ovid) and Web of Science on April 16, 2024, following the Preferred Reporting items for Systematic Reviews and Meta-Analyses (PRISMA). The search focused on intraoperative AR applications and intraoperative navigational purposes for deformable organs. Quality assessment was performed and studies were categorized according to initial registration and dynamic tracking methods.Results: 33 articles were included, of which one involved pulmonary surgery. Studies used both manual and (semi-) automatic registration methods, established through anatomical landmark-based, fiducial-based, or surface-based techniques. Diverse outcome measures were considered, including surgical outcomes and registration accuracy. The majority of studies that reached an registration accuracy below 5 mm applied surface-based registration.Conclusions: AR can potentially aid surgeons with real-time navigation and decision making during anatomically complex minimally invasive procedures. Future research for pulmonary applications should focus on exploring surface-based registration methods, considering their non-invasive, marker-less nature, and promising accuracy. Additionally, vascular-labeling-based methods are worth exploring, given the importance and relative stability of broncho-vascular anatomy in pulmonary VATS/RATS. Assessing clinical feasibility of these approaches is crucial, particularly concerning registration accuracy and potential impact on surgical outcomes.","PeriodicalId":22095,"journal":{"name":"Surgical Innovation","volume":null,"pages":null},"PeriodicalIF":1.2000,"publicationDate":"2024-12-01","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC11475712/pdf/","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Surgical Innovation","FirstCategoryId":"3","ListUrlMain":"https://doi.org/10.1177/15533506241290412","RegionNum":4,"RegionCategory":"医学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"2024/10/7 0:00:00","PubModel":"Epub","JCR":"Q3","JCRName":"SURGERY","Score":null,"Total":0}

引用次数: 0

Abstract

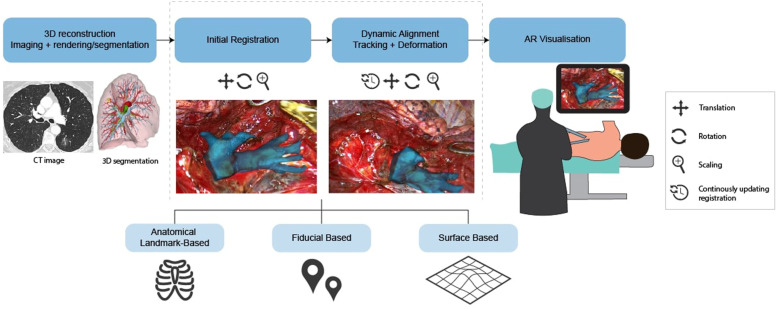

Objective: This systematic review investigates of Augmented Reality (AR) systems used in minimally invasive surgery of deformable organs, focusing on initial registration, dynamic tracking, and visualization. The objective is to acquire a comprehensive understanding of the current knowledge, applications, and challenges associated with current AR-techniques, aiming to leverage these insights for developing a dedicated AR pulmonary Video or Robotic Assisted Thoracic Surgery (VATS/RATS) workflow.

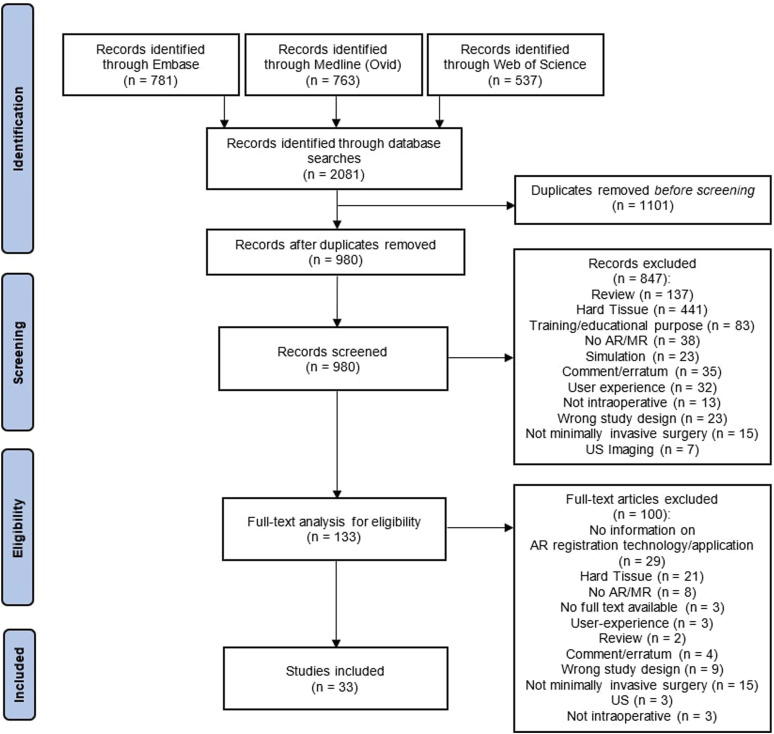

Methods: A systematic search was conducted within Embase, Medline (Ovid) and Web of Science on April 16, 2024, following the Preferred Reporting items for Systematic Reviews and Meta-Analyses (PRISMA). The search focused on intraoperative AR applications and intraoperative navigational purposes for deformable organs. Quality assessment was performed and studies were categorized according to initial registration and dynamic tracking methods.

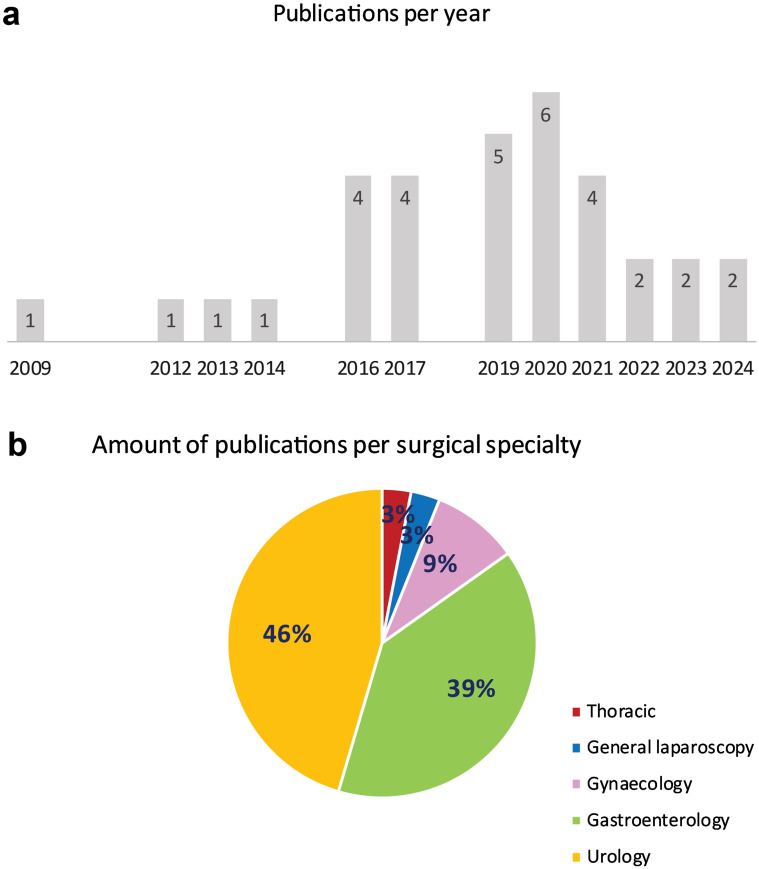

Results: 33 articles were included, of which one involved pulmonary surgery. Studies used both manual and (semi-) automatic registration methods, established through anatomical landmark-based, fiducial-based, or surface-based techniques. Diverse outcome measures were considered, including surgical outcomes and registration accuracy. The majority of studies that reached an registration accuracy below 5 mm applied surface-based registration.

Conclusions: AR can potentially aid surgeons with real-time navigation and decision making during anatomically complex minimally invasive procedures. Future research for pulmonary applications should focus on exploring surface-based registration methods, considering their non-invasive, marker-less nature, and promising accuracy. Additionally, vascular-labeling-based methods are worth exploring, given the importance and relative stability of broncho-vascular anatomy in pulmonary VATS/RATS. Assessing clinical feasibility of these approaches is crucial, particularly concerning registration accuracy and potential impact on surgical outcomes.
