{"title":"Investigation of the Parameters of a Self-Focused Electron Beam Outputted Behind the Anode of a Vacuum Diode","authors":"V. I. Oleshko, V. V. Nguyen","doi":"10.1134/s1063785023180141","DOIUrl":null,"url":null,"abstract":"<h3 data-test=\"abstract-sub-heading\">Abstract</h3><p>The parameters of a high-current electron beam extracted from the self-focusing zone through a hole in the anode into a vacuum chamber are investigated. The beam parameters were determined from the measurement of the spatial distribution of destruction and glow arising in polymethyl methacrylate samples installed at different distances from the anode (electron beam autographs). The formation of two electron beams—a self-focused with a high energy density, propagating along the axis of the cone facing the base to the anode with an apex angle of ~7° and a high-energy beam of low density, propagating in a hollow truncated cone and surrounding self-focused, was found. The oscillograms of the current and the energy of the electron beams were measured.</p>","PeriodicalId":784,"journal":{"name":"Technical Physics Letters","volume":null,"pages":null},"PeriodicalIF":0.8000,"publicationDate":"2024-08-29","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Technical Physics Letters","FirstCategoryId":"101","ListUrlMain":"https://doi.org/10.1134/s1063785023180141","RegionNum":4,"RegionCategory":"物理与天体物理","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q4","JCRName":"PHYSICS, APPLIED","Score":null,"Total":0}
引用次数: 0
Abstract

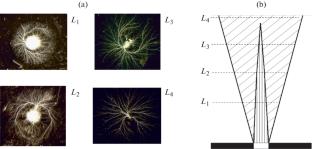

The parameters of a high-current electron beam extracted from the self-focusing zone through a hole in the anode into a vacuum chamber are investigated. The beam parameters were determined from the measurement of the spatial distribution of destruction and glow arising in polymethyl methacrylate samples installed at different distances from the anode (electron beam autographs). The formation of two electron beams—a self-focused with a high energy density, propagating along the axis of the cone facing the base to the anode with an apex angle of ~7° and a high-energy beam of low density, propagating in a hollow truncated cone and surrounding self-focused, was found. The oscillograms of the current and the energy of the electron beams were measured.
期刊介绍：
Technical Physics Letters is a companion journal to Technical Physics and offers rapid publication of developments in theoretical and experimental physics with potential technological applications. Recent emphasis has included many papers on gas lasers and on lasing in semiconductors, as well as many reports on high Tc superconductivity. The excellent coverage of plasma physics seen in the parent journal, Technical Physics, is also present here with quick communication of developments in theoretical and experimental work in all fields with probable technical applications. Topics covered are basic and applied physics; plasma physics; solid state physics; physical electronics; accelerators; microwave electron devices; holography.
