Suppression of Deep-Level Defects and Interface Modification in Antimony Sulfide Thin-Film Solar Cells Via Solution-Processed Sulfurization

IF 5.5 3区 材料科学 Q2 CHEMISTRY, PHYSICAL
Xuerui Li, Ausaf Ali Shah, Muhammad Abbas, Juguang Hu*, Zhuanghao Zheng, Shuo Chen, Zhenghua Su, Jun Zhao*, Muhammad Ishaq* and Guangxing Liang,
{"title":"Suppression of Deep-Level Defects and Interface Modification in Antimony Sulfide Thin-Film Solar Cells Via Solution-Processed Sulfurization","authors":"Xuerui Li,&nbsp;Ausaf Ali Shah,&nbsp;Muhammad Abbas,&nbsp;Juguang Hu*,&nbsp;Zhuanghao Zheng,&nbsp;Shuo Chen,&nbsp;Zhenghua Su,&nbsp;Jun Zhao*,&nbsp;Muhammad Ishaq* and Guangxing Liang,&nbsp;","doi":"10.1021/acsaem.4c0101310.1021/acsaem.4c01013","DOIUrl":null,"url":null,"abstract":"<p >Antimony sulfide (Sb<sub>2</sub>S<sub>3</sub>) has garnered considerable interest in photovoltaic technology due to its excellent optoelectronic properties. However, theoretical calculations have revealed complex defect properties in Sb<sub>2</sub>S<sub>3</sub>, potentially impacting the power conversion efficiency (PCE). In this study, based on the effect of Sb<sub>2</sub>S<sub>3</sub> absorber thickness and annealing temperature on the performance of photovoltaic devices, the absorber surface was treated via solution-processed sulfurization using thioacetamide to replenish missing sulfur elements and mitigate interfacial and deep bulk defects. Additionally, this treatment improved the hydrophilic nature of the absorber layer, facilitating subsequent spin-coating of the hole transport layer. Consequently, the efficiency of the champion device increased from 5.90% to 6.50% under standard sunlight, with open-circuit voltage, short-circuit density, and fill factor values of 695 mV, 17.28 mA/cm<sup>2</sup>, and 54.11%, respectively. Furthermore, owing to the inherent high bandgap of Sb<sub>2</sub>S<sub>3</sub> and the bandgap widening upon solution-processed sulfurization effect, the device demonstrated a PCE of 10.17% under 1000 lx room illumination, making it promising for indoor applications in the future development of Sb<sub>2</sub>S<sub>3</sub>-based solar cells.</p>","PeriodicalId":4,"journal":{"name":"ACS Applied Energy Materials","volume":"7 14","pages":"5848–5856 5848–5856"},"PeriodicalIF":5.5000,"publicationDate":"2024-06-28","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Applied Energy Materials","FirstCategoryId":"88","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acsaem.4c01013","RegionNum":3,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"CHEMISTRY, PHYSICAL","Score":null,"Total":0}
引用次数: 0

Abstract

Antimony sulfide (Sb2S3) has garnered considerable interest in photovoltaic technology due to its excellent optoelectronic properties. However, theoretical calculations have revealed complex defect properties in Sb2S3, potentially impacting the power conversion efficiency (PCE). In this study, based on the effect of Sb2S3 absorber thickness and annealing temperature on the performance of photovoltaic devices, the absorber surface was treated via solution-processed sulfurization using thioacetamide to replenish missing sulfur elements and mitigate interfacial and deep bulk defects. Additionally, this treatment improved the hydrophilic nature of the absorber layer, facilitating subsequent spin-coating of the hole transport layer. Consequently, the efficiency of the champion device increased from 5.90% to 6.50% under standard sunlight, with open-circuit voltage, short-circuit density, and fill factor values of 695 mV, 17.28 mA/cm2, and 54.11%, respectively. Furthermore, owing to the inherent high bandgap of Sb2S3 and the bandgap widening upon solution-processed sulfurization effect, the device demonstrated a PCE of 10.17% under 1000 lx room illumination, making it promising for indoor applications in the future development of Sb2S3-based solar cells.

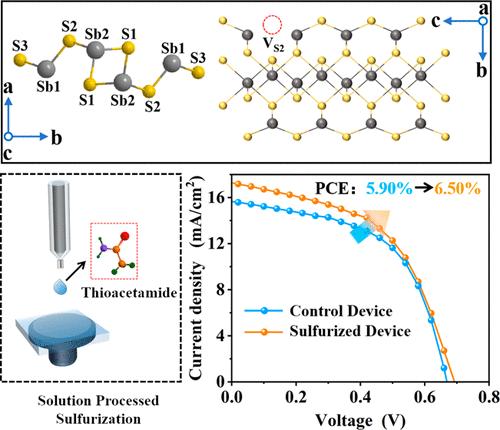

Abstract Image

通过溶液法硫化抑制硫化锑薄膜太阳能电池中的深层缺陷和界面改性
硫化锑(Sb2S3)因其出色的光电特性,在光伏技术领域引起了广泛关注。然而,理论计算显示 Sb2S3 具有复杂的缺陷特性,可能会影响功率转换效率 (PCE)。在本研究中,基于 Sb2S3 吸收体厚度和退火温度对光伏器件性能的影响,使用硫代乙酰胺对吸收体表面进行了溶液硫化处理,以补充缺失的硫元素并减轻界面和深层块状缺陷。此外,这种处理还改善了吸收层的亲水性,有利于随后对空穴传输层进行旋涂。因此,在标准阳光下,冠军器件的效率从 5.90% 提高到 6.50%,开路电压、短路密度和填充因子值分别为 695 mV、17.28 mA/cm2 和 54.11%。此外,由于 Sb2S3 固有的高带隙以及溶液处理硫化效应导致的带隙增宽,该器件在 1000 lx 室内光照下的 PCE 为 10.17%,因此在未来开发基于 Sb2S3 的太阳能电池时,该器件有望在室内应用。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
