Rational solvent selection for the preparation of industrial monolithic supported liquid-phase (SLP) olefin hydroformylation catalyst

Abstract

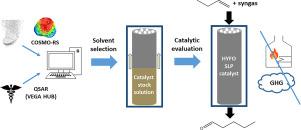

Heterogenisation of the hydroformylation (HyFo) process converting C4 olefins and syngas (CO/H₂) to n-pentanal can substantially reduce its carbon footprint by simplifying downstream processing. Current upscaling efforts include constructing a pilot plant containing a Rh-diphosphite-stabilized supported liquid-phase (SLP) catalyst. The air-sensitive nature of the catalyst requires in-situ impregnation of the porous support material with the liquid phase components (Rh-precursor, ligand, stabiliser) entailing the use of large quantities of an organic solvent. Environment, health, and safety (EHS) as well as regulatory aspects prompt the search for an alternative to dichloromethane (DCM), which was used as standard solvent for lab-scale studies. To obtain alternatives to DCM, the replacement solvent methyl tert-butyl ether (MTBE) and in-silico screening of more than 5000 solvent candidates has been performed covering boiling points and solubility predictions by COSMO-RS as well as carcinogenicity- and mutagenicity predictions by quantitative structure–activity relationship (QSAR) models. The final list of solvent candidates contained unsaturated compounds (alkenes, alkynes) in addition to ether- and ester-functionalized​ solvents, which are typically recommended as DCM replacements. Sufficiently high solubilities of ligand and stabiliser to prepare the desired SLP catalyst were experimentally determined in the following solvents: methyl propionate (MP), dimethoxymethane (DMM), MTBE, tetrahydrofuran (THF) and DCM for benchmarking, and a monolithic SLP catalyst prepared with MTBE demonstrated to perform equally well in the HyFo reaction of 1-butene as the benchmark catalyst prepared using DCM solvent. Overall, the study demonstrates a practical approach for selecting solvents with a greener profile for making catalyst systems applicable for large-scale production.
