Jun Peng, Haonan Cheng, Jingyan Liu, Weiyi Han, Tao Wu, Yunjie Yin, Chaoxia Wang
{"title":"Superhydrophobic MXene-Based Fabric with Electromagnetic Interference Shielding and Thermal Management Ability for Flexible Sensors","authors":"Jun Peng, Haonan Cheng, Jingyan Liu, Weiyi Han, Tao Wu, Yunjie Yin, Chaoxia Wang","doi":"10.1007/s42765-023-00328-x","DOIUrl":null,"url":null,"abstract":"<div><p>Smart fabrics have made remarkable progress in the field of wearable electronics because of their unique structure, flexibility and breathability, which are highly desirable with integrated multifunctionality. Here, a superhydrophobic smart fabric has been fabricated by decorating conductive MXene on nylon fabric modified by polydopamine (PDA), followed by spraying hydrophobic materials (SiO<sub>2</sub> and FOTS). The hydrophobic layer not only provides the fabric with superhydrophobicity, but also protects MXene from oxidation. Highly conductive MXene-wrapped fibers endow the fabric with adjustable conductivity and many satisfactory functions. Commendably, the smart fabric possesses sensing performances of ultralow detection limit (0.2% strain), fast response time (60 ms), short recovery time (90 ms), and outstanding sensing stability (5000 cycles). These sensing performances allow the smart fabric to accurately detect body respiratory signals in the running state, exercise state and sleep state, thus keeping track of respiratory health information. Moreover, the smart fabric also exhibits outstanding EMI shielding effectiveness (66.5 dB) in the X-band, satisfactory photothermal performance (68.6 °C at 100 mW/cm<sup>2</sup>), and excellent electrothermal conversion capability (up to 102.3 °C at 8 V). Therefore, the smart fabric is extremely promising for applications in EMI shielding, thermal management, and respiratory monitoring, and is an ideal candidate for smart clothing and as a medical diagnostic tool.</p><h3>Graphical Abstract</h3><p>It is of great significance to develop smart fabric with outstanding mechanical robustness and environmental stability under harsh conditions for its practical applications. A superhydrophobic fabric has been fabricated with integrated sensing capacity, EMI shielding effectiveness, electrothermal performance and photothermal performance, which enable the smart fabric to work in harsh conditions, indicating an ideal candidate for smart clothing.</p><div><figure><div><div><picture><source><img></source></picture></div></div></figure></div></div>","PeriodicalId":459,"journal":{"name":"Advanced Fiber Materials","volume":"5 6","pages":"2099 - 2113"},"PeriodicalIF":21.3000,"publicationDate":"2023-10-10","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"1","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Advanced Fiber Materials","FirstCategoryId":"88","ListUrlMain":"https://link.springer.com/article/10.1007/s42765-023-00328-x","RegionNum":1,"RegionCategory":"工程技术","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 1
Abstract
Smart fabrics have made remarkable progress in the field of wearable electronics because of their unique structure, flexibility and breathability, which are highly desirable with integrated multifunctionality. Here, a superhydrophobic smart fabric has been fabricated by decorating conductive MXene on nylon fabric modified by polydopamine (PDA), followed by spraying hydrophobic materials (SiO2 and FOTS). The hydrophobic layer not only provides the fabric with superhydrophobicity, but also protects MXene from oxidation. Highly conductive MXene-wrapped fibers endow the fabric with adjustable conductivity and many satisfactory functions. Commendably, the smart fabric possesses sensing performances of ultralow detection limit (0.2% strain), fast response time (60 ms), short recovery time (90 ms), and outstanding sensing stability (5000 cycles). These sensing performances allow the smart fabric to accurately detect body respiratory signals in the running state, exercise state and sleep state, thus keeping track of respiratory health information. Moreover, the smart fabric also exhibits outstanding EMI shielding effectiveness (66.5 dB) in the X-band, satisfactory photothermal performance (68.6 °C at 100 mW/cm2), and excellent electrothermal conversion capability (up to 102.3 °C at 8 V). Therefore, the smart fabric is extremely promising for applications in EMI shielding, thermal management, and respiratory monitoring, and is an ideal candidate for smart clothing and as a medical diagnostic tool.

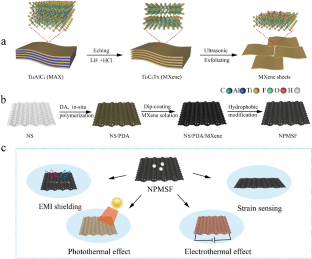

Graphical Abstract
It is of great significance to develop smart fabric with outstanding mechanical robustness and environmental stability under harsh conditions for its practical applications. A superhydrophobic fabric has been fabricated with integrated sensing capacity, EMI shielding effectiveness, electrothermal performance and photothermal performance, which enable the smart fabric to work in harsh conditions, indicating an ideal candidate for smart clothing.
