一例无症状转移性甲状腺癌患者的非典型双侧通气/灌注不匹配。

IF 1.7 Q3 RADIOLOGY, NUCLEAR MEDICINE & MEDICAL IMAGING
David Kersting, Christoph Rischpler, Till Plönes, Clemens Aigner, Lale Umutlu, Ken Herrmann, Hubertus Hautzel
{"title":"一例无症状转移性甲状腺癌患者的非典型双侧通气/灌注不匹配。","authors":"David Kersting,&nbsp;Christoph Rischpler,&nbsp;Till Plönes,&nbsp;Clemens Aigner,&nbsp;Lale Umutlu,&nbsp;Ken Herrmann,&nbsp;Hubertus Hautzel","doi":"10.1186/s41824-021-00120-3","DOIUrl":null,"url":null,"abstract":"<p><strong>Background: </strong>Pulmonary embolism is indicated by ventilation/perfusion (V/P) mismatches in ventilation/perfusion scintigraphy. However, other pathologies may also evoke segmental or lobar mismatches. Thus, diagnosis can be difficult in asymptomatic patients with equivocal clinical presentation.</p><p><strong>Case presentation: </strong>We present a case of multiple bilateral pulmonary ventilation/perfusion mismatches in a poorly differentiated thyroid cancer patient. Exact diagnosis was difficult, as the patient was asymptomatic and pulmonary embolism is commonly unilateral in tumour patients and not typical for thyroid cancer. External pulmonary artery compression by aortic aneurysm, multiple metastases or additional bronchopulmonary malignancies were considered as differential diagnosis. After unilateral pulmonary and hilar metastasectomy, perfusion normalised on the operated side. Pulmonary perfusion defects due to pulmonary artery compression by hilar metastases were finally diagnosed. Pulmonary embolism was deemed unlikely due to the left-sided post-operative normalisation, persistence of right-sided V/P mismatches, and the lack of clinical symptoms.</p><p><strong>Conclusion: </strong>Pulmonary artery compression may mimic pulmonary artery embolism in lung perfusion scintigraphy and should be considered in bronchopulmonary tumour patients with hilar metastases and unilateral ventilation/perfusion mismatches affecting a complete lobe or even lung. Following the presented case, also bilateral segmental and subsegmental mismatches in patients with hilar metastases from non-bronchopulmonary cancer entities should be carefully evaluated.</p>","PeriodicalId":36160,"journal":{"name":"European Journal of Hybrid Imaging","volume":"5 1","pages":"25"},"PeriodicalIF":1.7000,"publicationDate":"2021-12-20","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC8685190/pdf/","citationCount":"1","resultStr":"{\"title\":\"Atypical bilateral ventilation/perfusion mismatches in an asymptomatic patient suffering from metastatic thyroid cancer.\",\"authors\":\"David Kersting,&nbsp;Christoph Rischpler,&nbsp;Till Plönes,&nbsp;Clemens Aigner,&nbsp;Lale Umutlu,&nbsp;Ken Herrmann,&nbsp;Hubertus Hautzel\",\"doi\":\"10.1186/s41824-021-00120-3\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p><strong>Background: </strong>Pulmonary embolism is indicated by ventilation/perfusion (V/P) mismatches in ventilation/perfusion scintigraphy. However, other pathologies may also evoke segmental or lobar mismatches. Thus, diagnosis can be difficult in asymptomatic patients with equivocal clinical presentation.</p><p><strong>Case presentation: </strong>We present a case of multiple bilateral pulmonary ventilation/perfusion mismatches in a poorly differentiated thyroid cancer patient. Exact diagnosis was difficult, as the patient was asymptomatic and pulmonary embolism is commonly unilateral in tumour patients and not typical for thyroid cancer. External pulmonary artery compression by aortic aneurysm, multiple metastases or additional bronchopulmonary malignancies were considered as differential diagnosis. After unilateral pulmonary and hilar metastasectomy, perfusion normalised on the operated side. Pulmonary perfusion defects due to pulmonary artery compression by hilar metastases were finally diagnosed. Pulmonary embolism was deemed unlikely due to the left-sided post-operative normalisation, persistence of right-sided V/P mismatches, and the lack of clinical symptoms.</p><p><strong>Conclusion: </strong>Pulmonary artery compression may mimic pulmonary artery embolism in lung perfusion scintigraphy and should be considered in bronchopulmonary tumour patients with hilar metastases and unilateral ventilation/perfusion mismatches affecting a complete lobe or even lung. Following the presented case, also bilateral segmental and subsegmental mismatches in patients with hilar metastases from non-bronchopulmonary cancer entities should be carefully evaluated.</p>\",\"PeriodicalId\":36160,\"journal\":{\"name\":\"European Journal of Hybrid Imaging\",\"volume\":\"5 1\",\"pages\":\"25\"},\"PeriodicalIF\":1.7000,\"publicationDate\":\"2021-12-20\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC8685190/pdf/\",\"citationCount\":\"1\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"European Journal of Hybrid Imaging\",\"FirstCategoryId\":\"1085\",\"ListUrlMain\":\"https://doi.org/10.1186/s41824-021-00120-3\",\"RegionNum\":0,\"RegionCategory\":null,\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q3\",\"JCRName\":\"RADIOLOGY, NUCLEAR MEDICINE & MEDICAL IMAGING\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"European Journal of Hybrid Imaging","FirstCategoryId":"1085","ListUrlMain":"https://doi.org/10.1186/s41824-021-00120-3","RegionNum":0,"RegionCategory":null,"ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q3","JCRName":"RADIOLOGY, NUCLEAR MEDICINE & MEDICAL IMAGING","Score":null,"Total":0}
引用次数: 1

摘要

背景:肺栓塞是通过通气/灌注显像(ventilation/perfusion, V/P)不匹配来指示的。然而,其他病理也可能引起节段性或大叶性不匹配。因此,在临床表现不明确的无症状患者中,诊断是困难的。病例介绍:我们报告一例低分化甲状腺癌患者的多重双侧肺通气/灌注不匹配。由于患者无症状,肺栓塞在肿瘤患者中通常是单侧的,而在甲状腺癌中并不典型,因此很难准确诊断。肺动脉外动脉压迫的主动脉瘤,多发性转移或额外的支气管肺恶性肿瘤被认为是鉴别诊断。单侧肺及肺门转移灶切除后,手术侧灌注恢复正常。最终诊断为肺门转移灶压迫肺动脉所致的肺灌注缺损。由于左侧术后恢复正常,右侧V/P不匹配持续存在,并且缺乏临床症状,因此不太可能发生肺栓塞。结论:肺动脉压迫在肺灌注显像中可能与肺动脉栓塞相似,在肺门转移且单侧通气/灌注不匹配影响全肺甚至肺的支气管肺肿瘤患者中应考虑肺动脉压迫。在本病例之后,非支气管肺癌肺门转移患者的双侧和亚节段不匹配也应仔细评估。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Atypical bilateral ventilation/perfusion mismatches in an asymptomatic patient suffering from metastatic thyroid cancer.

Atypical bilateral ventilation/perfusion mismatches in an asymptomatic patient suffering from metastatic thyroid cancer.

Atypical bilateral ventilation/perfusion mismatches in an asymptomatic patient suffering from metastatic thyroid cancer.

Background: Pulmonary embolism is indicated by ventilation/perfusion (V/P) mismatches in ventilation/perfusion scintigraphy. However, other pathologies may also evoke segmental or lobar mismatches. Thus, diagnosis can be difficult in asymptomatic patients with equivocal clinical presentation.

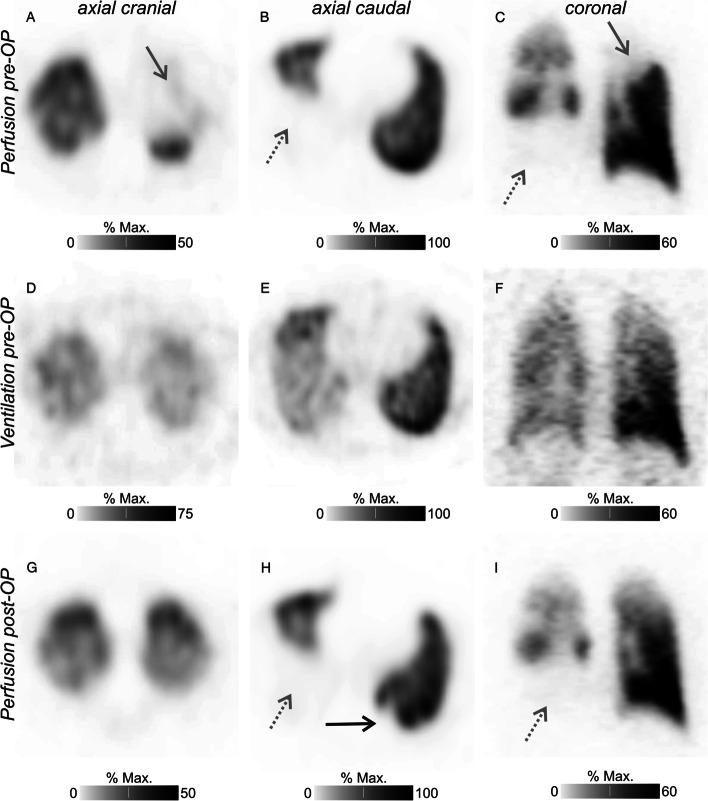

Case presentation: We present a case of multiple bilateral pulmonary ventilation/perfusion mismatches in a poorly differentiated thyroid cancer patient. Exact diagnosis was difficult, as the patient was asymptomatic and pulmonary embolism is commonly unilateral in tumour patients and not typical for thyroid cancer. External pulmonary artery compression by aortic aneurysm, multiple metastases or additional bronchopulmonary malignancies were considered as differential diagnosis. After unilateral pulmonary and hilar metastasectomy, perfusion normalised on the operated side. Pulmonary perfusion defects due to pulmonary artery compression by hilar metastases were finally diagnosed. Pulmonary embolism was deemed unlikely due to the left-sided post-operative normalisation, persistence of right-sided V/P mismatches, and the lack of clinical symptoms.

Conclusion: Pulmonary artery compression may mimic pulmonary artery embolism in lung perfusion scintigraphy and should be considered in bronchopulmonary tumour patients with hilar metastases and unilateral ventilation/perfusion mismatches affecting a complete lobe or even lung. Following the presented case, also bilateral segmental and subsegmental mismatches in patients with hilar metastases from non-bronchopulmonary cancer entities should be carefully evaluated.
