Sandra Huber, Jörg Michel, Maurice Reijnen, Maria Averina, Bjørn Bolann, Jon Øyvind Odland, Solrunn Hansen, Jan Brox
{"title":"利用电感耦合等离子体质谱法分析人体全血、血清和尿液中 33 种元素的快速前向稀释-拍摄多元素法:用于临床诊断和生物监测的简化方法。","authors":"Sandra Huber, Jörg Michel, Maurice Reijnen, Maria Averina, Bjørn Bolann, Jon Øyvind Odland, Solrunn Hansen, Jan Brox","doi":"10.1155/2024/9944995","DOIUrl":null,"url":null,"abstract":"<p><p>The analysis of toxic and essential elements in human matrices is used in clinical diagnostics and for biomonitoring of different populations to study related health outcomes. This work aimed to develop fast and reliable methods for the analysis of a broad range of elements in liquid human matrices, such as whole blood, serum, and urine, with a similar setup for the three matrices and different analysis needs. An easy and fast-forward dilute-and-shoot method for 33 elements (i.e., Ag, Al, As, B, Ba, Be, Bi, Cd, Ce, Co, Cr, Cu, Hg, I, Li, Mn, Mo, Ni, Pb, Pd, Pt, Sb, Se, Sn, Sr, Te, Th, Tl, U, V, W, Zn, and Zr) was developed. 200 <i>µ</i>L of either sample material was diluted with an alkaline reagent to a volume of 4 mL in total. Sample dilution and preparation of matrix-matched calibration standards were performed in 48-well plates by an automated liquid handler. Diluted samples were analyzed by inductively coupled plasma mass spectrometry on a Perkin Elmer NexIon 300D ICP-MS instrument equipped with an ESI-FAST SC2DX autosampler in kinetic energy discrimination mode with helium as cell gas at either 4.8 mL or 5.7 mL and 1600 W RF generator power. The method validation results showed good accuracy for fresh human samples from an external quality assessment scheme with measured concentrations within the assigned concentration ranges. Good precision and reproducibility for most elements were demonstrated with variation coefficients below or far below 8% and 15% for whole blood, 8% and 10% for serum, and 10% and 10% for urine, respectively. The developed reagent and instrumental setup were applicable to all three matrices. This minimizes the risk of human errors when switching between analyses of the different sample matrices and allows a rapid and easy analysis of whole blood, serum, and urine within one day if needed. The method demonstrated robustness over time, withstanding minor changes in the preparation of working solutions and samples, instrumental analysis, and setup. Analysis of human real samples showed the method's applicability for 33 toxic and essential elements in whole blood, serum, and urine and at concentrations relevant to clinical diagnostics as well as biomonitoring.</p>","PeriodicalId":14974,"journal":{"name":"Journal of Analytical Methods in Chemistry","volume":"2024 ","pages":"9944995"},"PeriodicalIF":2.3000,"publicationDate":"2024-08-20","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC11535262/pdf/","citationCount":"0","resultStr":"{\"title\":\"A Fast-Forward Dilute-and-Shoot Multielement Method for Analysis of 33 Elements in Human Whole Blood, Serum, and Urine by Inductively Coupled Plasma Mass Spectrometry: A Streamlined Approach for Clinical Diagnostic and Biomonitoring.\",\"authors\":\"Sandra Huber, Jörg Michel, Maurice Reijnen, Maria Averina, Bjørn Bolann, Jon Øyvind Odland, Solrunn Hansen, Jan Brox\",\"doi\":\"10.1155/2024/9944995\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p><p>The analysis of toxic and essential elements in human matrices is used in clinical diagnostics and for biomonitoring of different populations to study related health outcomes. This work aimed to develop fast and reliable methods for the analysis of a broad range of elements in liquid human matrices, such as whole blood, serum, and urine, with a similar setup for the three matrices and different analysis needs. An easy and fast-forward dilute-and-shoot method for 33 elements (i.e., Ag, Al, As, B, Ba, Be, Bi, Cd, Ce, Co, Cr, Cu, Hg, I, Li, Mn, Mo, Ni, Pb, Pd, Pt, Sb, Se, Sn, Sr, Te, Th, Tl, U, V, W, Zn, and Zr) was developed. 200 <i>µ</i>L of either sample material was diluted with an alkaline reagent to a volume of 4 mL in total. Sample dilution and preparation of matrix-matched calibration standards were performed in 48-well plates by an automated liquid handler. Diluted samples were analyzed by inductively coupled plasma mass spectrometry on a Perkin Elmer NexIon 300D ICP-MS instrument equipped with an ESI-FAST SC2DX autosampler in kinetic energy discrimination mode with helium as cell gas at either 4.8 mL or 5.7 mL and 1600 W RF generator power. The method validation results showed good accuracy for fresh human samples from an external quality assessment scheme with measured concentrations within the assigned concentration ranges. Good precision and reproducibility for most elements were demonstrated with variation coefficients below or far below 8% and 15% for whole blood, 8% and 10% for serum, and 10% and 10% for urine, respectively. The developed reagent and instrumental setup were applicable to all three matrices. This minimizes the risk of human errors when switching between analyses of the different sample matrices and allows a rapid and easy analysis of whole blood, serum, and urine within one day if needed. The method demonstrated robustness over time, withstanding minor changes in the preparation of working solutions and samples, instrumental analysis, and setup. Analysis of human real samples showed the method's applicability for 33 toxic and essential elements in whole blood, serum, and urine and at concentrations relevant to clinical diagnostics as well as biomonitoring.</p>\",\"PeriodicalId\":14974,\"journal\":{\"name\":\"Journal of Analytical Methods in Chemistry\",\"volume\":\"2024 \",\"pages\":\"9944995\"},\"PeriodicalIF\":2.3000,\"publicationDate\":\"2024-08-20\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC11535262/pdf/\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Journal of Analytical Methods in Chemistry\",\"FirstCategoryId\":\"92\",\"ListUrlMain\":\"https://doi.org/10.1155/2024/9944995\",\"RegionNum\":3,\"RegionCategory\":\"化学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"2024/1/1 0:00:00\",\"PubModel\":\"eCollection\",\"JCR\":\"Q3\",\"JCRName\":\"CHEMISTRY, ANALYTICAL\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Journal of Analytical Methods in Chemistry","FirstCategoryId":"92","ListUrlMain":"https://doi.org/10.1155/2024/9944995","RegionNum":3,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"2024/1/1 0:00:00","PubModel":"eCollection","JCR":"Q3","JCRName":"CHEMISTRY, ANALYTICAL","Score":null,"Total":0}
A Fast-Forward Dilute-and-Shoot Multielement Method for Analysis of 33 Elements in Human Whole Blood, Serum, and Urine by Inductively Coupled Plasma Mass Spectrometry: A Streamlined Approach for Clinical Diagnostic and Biomonitoring.

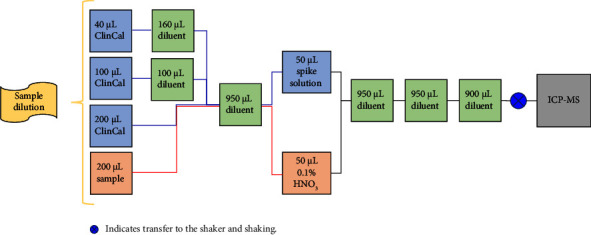

The analysis of toxic and essential elements in human matrices is used in clinical diagnostics and for biomonitoring of different populations to study related health outcomes. This work aimed to develop fast and reliable methods for the analysis of a broad range of elements in liquid human matrices, such as whole blood, serum, and urine, with a similar setup for the three matrices and different analysis needs. An easy and fast-forward dilute-and-shoot method for 33 elements (i.e., Ag, Al, As, B, Ba, Be, Bi, Cd, Ce, Co, Cr, Cu, Hg, I, Li, Mn, Mo, Ni, Pb, Pd, Pt, Sb, Se, Sn, Sr, Te, Th, Tl, U, V, W, Zn, and Zr) was developed. 200 µL of either sample material was diluted with an alkaline reagent to a volume of 4 mL in total. Sample dilution and preparation of matrix-matched calibration standards were performed in 48-well plates by an automated liquid handler. Diluted samples were analyzed by inductively coupled plasma mass spectrometry on a Perkin Elmer NexIon 300D ICP-MS instrument equipped with an ESI-FAST SC2DX autosampler in kinetic energy discrimination mode with helium as cell gas at either 4.8 mL or 5.7 mL and 1600 W RF generator power. The method validation results showed good accuracy for fresh human samples from an external quality assessment scheme with measured concentrations within the assigned concentration ranges. Good precision and reproducibility for most elements were demonstrated with variation coefficients below or far below 8% and 15% for whole blood, 8% and 10% for serum, and 10% and 10% for urine, respectively. The developed reagent and instrumental setup were applicable to all three matrices. This minimizes the risk of human errors when switching between analyses of the different sample matrices and allows a rapid and easy analysis of whole blood, serum, and urine within one day if needed. The method demonstrated robustness over time, withstanding minor changes in the preparation of working solutions and samples, instrumental analysis, and setup. Analysis of human real samples showed the method's applicability for 33 toxic and essential elements in whole blood, serum, and urine and at concentrations relevant to clinical diagnostics as well as biomonitoring.
