R. A. Ribeiro, P. D. C. Assunção, V. Sengupta, R. Khan, A. P. Gerlich
{"title":"Metal transfer and microstructures in aluminum welding using cold wire pulsed GMAW (CW-P-GMAW)","authors":"R. A. Ribeiro, P. D. C. Assunção, V. Sengupta, R. Khan, A. P. Gerlich","doi":"10.1007/s40194-025-02091-6","DOIUrl":null,"url":null,"abstract":"<div><p>This work compares the welding of 5-mm-thick AA5052 H-32 butt welds using pulsed gas metal arc welding (P-GMAW) and cold wire pulsed GMAW (CW-P-GMAW). Welding metal transfer was studied using high-speed imaging in conjunction with synchronized current and voltage acquisition. After welding, the joints were characterized through radiographic examination and standard metallography. The results have successfully demonstrated the feasibility of CW-P-GMAW welding AA5052 H-32. Additionally, the results suggest that the introduction of cold wire feed with pulsed current affects the temperature distribution and reduces the cooling rate of the welding pool accounting for reduced hardness and coarser microstructure.</p></div>","PeriodicalId":809,"journal":{"name":"Welding in the World","volume":"69 9","pages":"2839 - 2852"},"PeriodicalIF":2.5000,"publicationDate":"2025-06-03","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Welding in the World","FirstCategoryId":"88","ListUrlMain":"https://link.springer.com/article/10.1007/s40194-025-02091-6","RegionNum":4,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"METALLURGY & METALLURGICAL ENGINEERING","Score":null,"Total":0}
引用次数: 0
Abstract

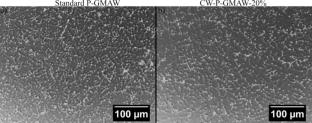

This work compares the welding of 5-mm-thick AA5052 H-32 butt welds using pulsed gas metal arc welding (P-GMAW) and cold wire pulsed GMAW (CW-P-GMAW). Welding metal transfer was studied using high-speed imaging in conjunction with synchronized current and voltage acquisition. After welding, the joints were characterized through radiographic examination and standard metallography. The results have successfully demonstrated the feasibility of CW-P-GMAW welding AA5052 H-32. Additionally, the results suggest that the introduction of cold wire feed with pulsed current affects the temperature distribution and reduces the cooling rate of the welding pool accounting for reduced hardness and coarser microstructure.
期刊介绍：
The journal Welding in the World publishes authoritative papers on every aspect of materials joining, including welding, brazing, soldering, cutting, thermal spraying and allied joining and fabrication techniques.
