Structural Analysis of Brazilian Graphite by X-ray Diffraction, Scanning Electron Microscopy, and Thermogravimetric Analysis with Simultaneous Differential Scanning Calorimetry

IF 0.4 Q4 PHYSICS, CONDENSED MATTER

Journal of Surface Investigation: X-ray, Synchrotron and Neutron Techniques Pub Date : 2025-09-10 DOI:10.1134/S1027451025700594

M. V. Soloninkina, D. V. Loginov, S. A. Moshkalev, N. N. Rozhkova

{"title":"Structural Analysis of Brazilian Graphite by X-ray Diffraction, Scanning Electron Microscopy, and Thermogravimetric Analysis with Simultaneous Differential Scanning Calorimetry","authors":"M. V. Soloninkina, D. V. Loginov, S. A. Moshkalev, N. N. Rozhkova","doi":"10.1134/S1027451025700594","DOIUrl":null,"url":null,"abstract":"<p>The results on X-ray analysis of Brazilian graphite sample are presented. During diffraction pattern indexing and qualitative X-ray phase analysis, it has been found that Brazilian graphite contains three phases of carbon, two of which belong to hexagonal graphite (α-graphite) and one to rhombohedral graphite (β‑graphite), which is confirmed by simultaneous thermal analysis. The unit cell parameters of each phase have been determined and refined. Calculations of conditional phase concentrations in the sample by the least squares method have shown that the conditional concentration of 47-1155 standard (JCPDS database) in the sample is 66%, 1-646 standard is 21.3%, and 2-456 standard is 12.6%. Using scanning electron microscopy, the sample surface topology has been found to be is a flake structure with a large number of particles, the size of which does not exceed 5 μm. The quantitative characteristics of the short-range order have been determined, which have shown that the structure of Brazilian graphite is close to that of hexagonal graphite within the error limits.</p>","PeriodicalId":671,"journal":{"name":"Journal of Surface Investigation: X-ray, Synchrotron and Neutron Techniques","volume":"19 2","pages":"405 - 412"},"PeriodicalIF":0.4000,"publicationDate":"2025-09-10","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Journal of Surface Investigation: X-ray, Synchrotron and Neutron Techniques","FirstCategoryId":"1085","ListUrlMain":"https://link.springer.com/article/10.1134/S1027451025700594","RegionNum":0,"RegionCategory":null,"ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q4","JCRName":"PHYSICS, CONDENSED MATTER","Score":null,"Total":0}

引用次数: 0

Abstract

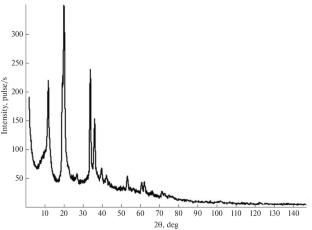

The results on X-ray analysis of Brazilian graphite sample are presented. During diffraction pattern indexing and qualitative X-ray phase analysis, it has been found that Brazilian graphite contains three phases of carbon, two of which belong to hexagonal graphite (α-graphite) and one to rhombohedral graphite (β‑graphite), which is confirmed by simultaneous thermal analysis. The unit cell parameters of each phase have been determined and refined. Calculations of conditional phase concentrations in the sample by the least squares method have shown that the conditional concentration of 47-1155 standard (JCPDS database) in the sample is 66%, 1-646 standard is 21.3%, and 2-456 standard is 12.6%. Using scanning electron microscopy, the sample surface topology has been found to be is a flake structure with a large number of particles, the size of which does not exceed 5 μm. The quantitative characteristics of the short-range order have been determined, which have shown that the structure of Brazilian graphite is close to that of hexagonal graphite within the error limits.

Abstract Image

查看原文本刊更多论文

用x射线衍射、扫描电子显微镜和热重分析同时差示扫描量热法分析巴西石墨结构

介绍了巴西石墨样品的x射线分析结果。通过衍射图谱标度和x射线定性物相分析，发现巴西石墨含有3个碳相，其中2个属于六边形石墨（α-石墨），1个属于菱形石墨（β -石墨），并通过同步热分析证实了这一点。确定并细化了各相的晶胞参数。用最小二乘法计算样品中的条件相浓度，结果表明，样品中47-1155标准品（JCPDS数据库）的条件相浓度为66%，1-646标准品为21.3%，2-456标准品为12.6%。通过扫描电镜观察，样品表面拓扑结构为含有大量颗粒的片状结构，颗粒尺寸不超过5 μm。测定了近程序的定量特征，表明巴西石墨的结构在误差范围内接近六边形石墨的结构。
